| SIZE |
200mm(W)x180mm(L)x15mm(H) |
| CPU |
S3C2410A(ARM920T) 266MHz |
| MEMORY |
2MB NOR , 64MB NAND, 64MB(32MB x 2) SDRAM |
| I/O |
Power(2Pin), Serial(3Pin), JTAG(7Pin),External I/O(160 Pin) |
| UART |
RS-232 1ch |
| FPGA |
XILINX SPARTAN XC3S250E |
| TOUCH |
Resistive Overlay Type |
| USB |
Device(B Type) 1ch. Support |
| Main function |
- resolution(2048x2048) : 2Mbyte x 2 SRAM memory
- 150frame : 512bit x 150 block RAM
- 9.7 inch power design
- Vcom voltage control : ± 10V ~ ±25V
- 50pin FPCB connector
- VPOS, VNEG, GVDD, GVEE signal control
- VGH1, VGH2, GCLK1~4 : use Tr switch for high resolution
- VPOS, VNEG, GVDD, GVEE, GVDD2, GVEE2, Vref, Vcom voltage setting |
| Disk |
SD Card Support |
| Appliction |

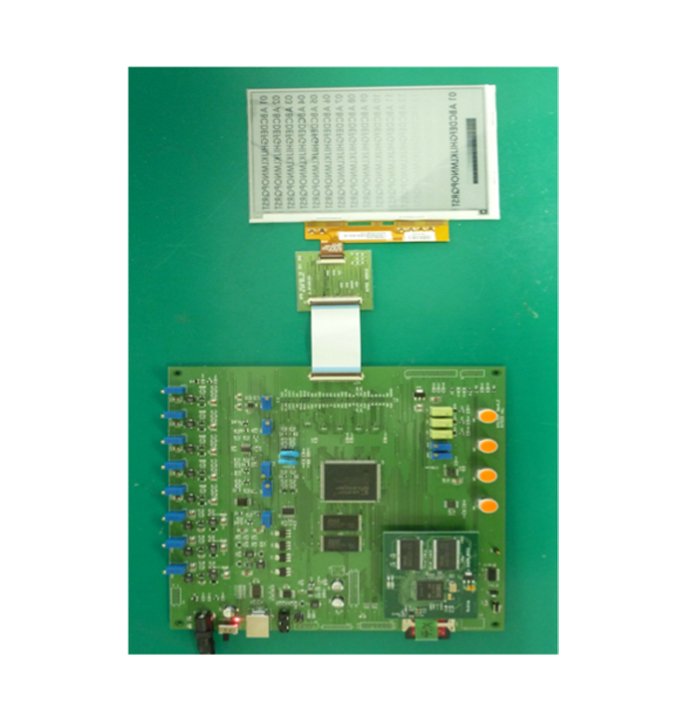

EPD Demo Display Kit, Pattern Generator, EPD Engineering Tester |
